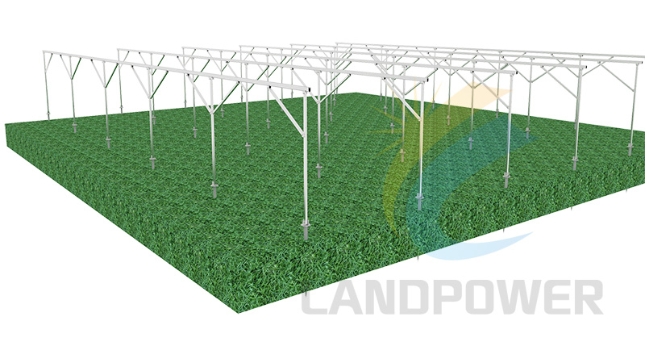

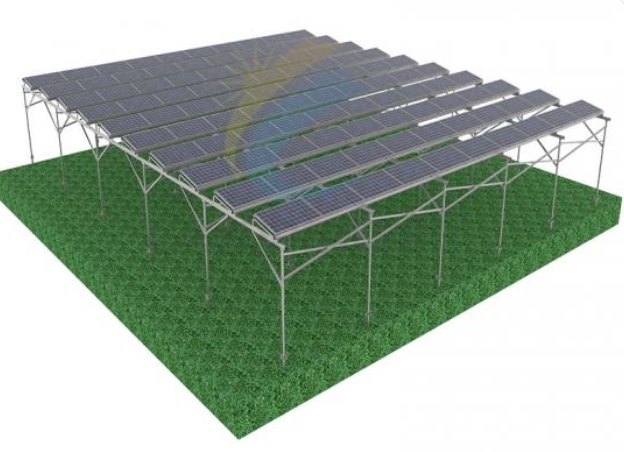

Agriculture Greenhouse solar structure is a type of solar structure that is often used in farmland. It is designed for installing solar panel on agricultureland, normally the structure need leave enough space for sunlight come down on plants, and the spacing between aluminum support is large enough for machine driving pass through.Our agricultural solar structure is made of aluminum profile,which is recyclable, and main parts arepre-assembled, easy to install and easy to disassemble.

Features:

• Sturdy Structure
• Enough space for sunlight come down on plants
• Convenient for machine pass through
• Easy for installation and disassembly
• Material is Recyclable

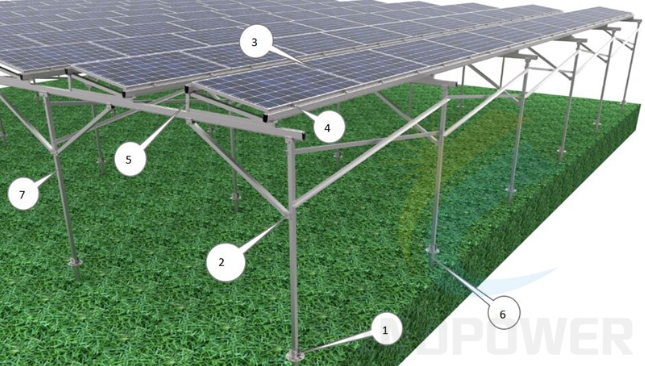

Main Components:

1. Base
2. H Shape Connector
3. Mid Clamp
4. End Clamp
5. Triangle
6. Ground Screw
7. Support

Technical Information:

Installation Site: Agriculture Land

Panel Orientation: Landscape or Portrait

Tilt Angle: 0--60°

Material: Aluminum 6005 T5

Surface Settlement: Anodized

Max Wind Load: 46 m/s

Foundation: Ground Screw or Concrete
